RAW ENERGY
XPG PYLON offers more than just a Bronze-certified Power Supply. Highly efficient DC-to-DC converters and continuous power in 4 different wattage options are making it an ideal PSU pick for all usages.

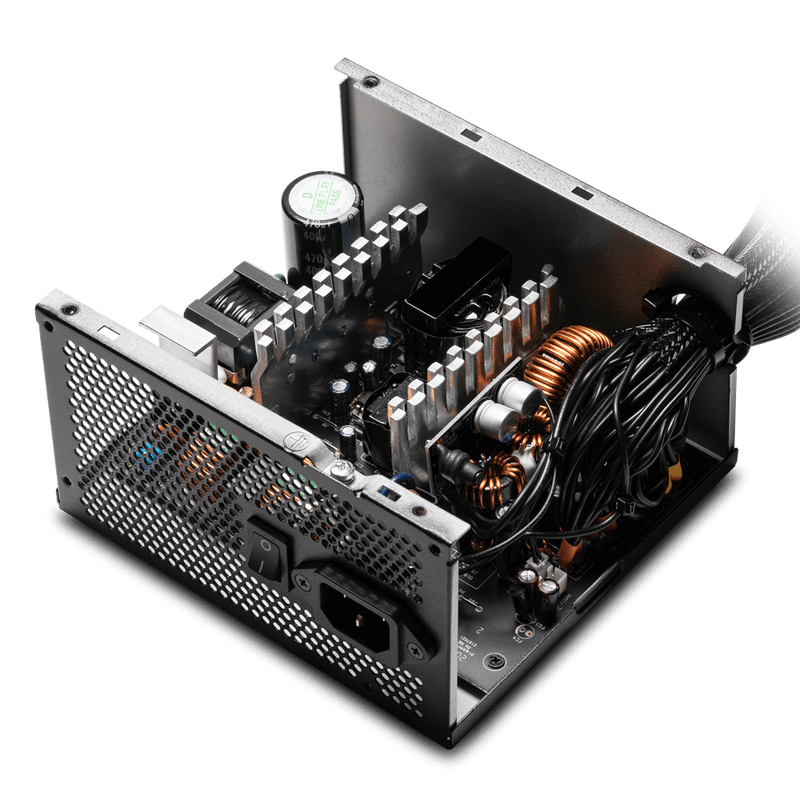

DC-to-DC Circuit in BRONZE Grade
XPG PYLON complies with Intel ATX Power Supply Design Guide‘s sleep mode function, featuring DC-to-DC 100% +12V Full Power(*) in all PYLON series, ensuring that power delivery remains consistent, power-efficient, and capable of supporting mid to high-end graphic cards and CPUs.
(*) DC-to-DC Circuit minimizes ripple noise, avoids unbalanced power load, and acts as a protective safeguard to PC components’ life expectancy.
80 Plus Bronze Certification
XPG PYLON is a 80 Plus Bronze certified power supply unit that guarantees energy efficiency at 20%, 50% and 100% of rated loads. XPG PYLON also complies with ErP 2014 Lot 3 Regulation, and it is designed for steady 24/7 Continuous Power system operation.
Cybenetics ETA and LAMBDA Certified
XPG PYLON SERIES is certified by Cybenetics for its efficiency and noise level, scoring at the top of its category in both ETA and LAMBDA standards.
120mm Fluid Dynamic Bearing (FDB) Fan
The fan control of the built-in 120mm Fluid Dynamic Bearing (FDB) Fan starts at around 700 rpm (25°C ambient) and maintains its low fan speed until around 70% power load.
The operating environment is kept quiet and efficient, and prolongs its life expectancy.
Main Japanese Capacitor at 105°C
High quality 105°C Main Japanese Capacitor in XPG PYLON Bronze Series ensures great durability and offer highest stability and reliability.
8 Industrial-Level Protections
XPG PYLON is designed for both efficiency and safety, and backed up by a 5-Year warranty. Fundamental protections such as OPP, UVP, OVP, SCP, OTP and OCP are all included, as well as NLO and SIP which are found in mid to high-end PSU, offering one of the highest standards of stability and security in this category.
Specifications
Dimensions (L x W x H)
140 x 150 x 86mm
Cybenetics Rating
650W/750W: SILVER
450W/550W: BRONZE
ATX Version
Intel ATX 12V V2.4 (Timing complies with Intel ATX12V Specific guidelines to version 2.52)
Protections
OCP / OVP / UVP / OPP / SCP / OTP / NLO / SIP
Input Current
750W：10A/5A 、650W：10A/5A 、550W：8A/4A 、450W：7A/3.5A
Input Frequency
50Hz - 60Hz
Operating Temperature
50°C
Fan Bearing
FDB (Fluid Dynamic Bearing)*
EPS 8 (4+4) Pin Connector
750W : 1 / 650W : 1 / 550W : 1 / 450W：1
EPS 8 Pin Connector
750w : 1 / 650w : 1 / 550w : 0 / 450w : 0
PCI-E 6+2 Pin Connector
750W : 4 / 650W : 4 / 550W : 2 / 450W：2
Molex 4 Pin Connector
750W : 3 / 650W : 3 / 550W : 2 / 450W：2
Certification
CE / UKCA / CB / FCC (IC) / EAC / CCC / TUV / cTUVus / TUV S-Mark / RCM / NOM / BSMI / KC
Weight
750W：
Product：2.12kg (4.7lb) ±5%
with Package：2.63kg (5.8lb) ±5%
650W：
Product：1.87kg (4.1lb) ±5%
with Package：2.38kg (5.2lb) ±5%
550W：
Product：1.77kg (3.9lb) ±5%
with Package：28kg (5.0lb) ±5%
450W：
Product：1.67kg (3.7lb) ±5%
with Package：2.2kg (4.9lb) ±5%
Warranty
5 Years (3 years when purchased before 2022 January)
